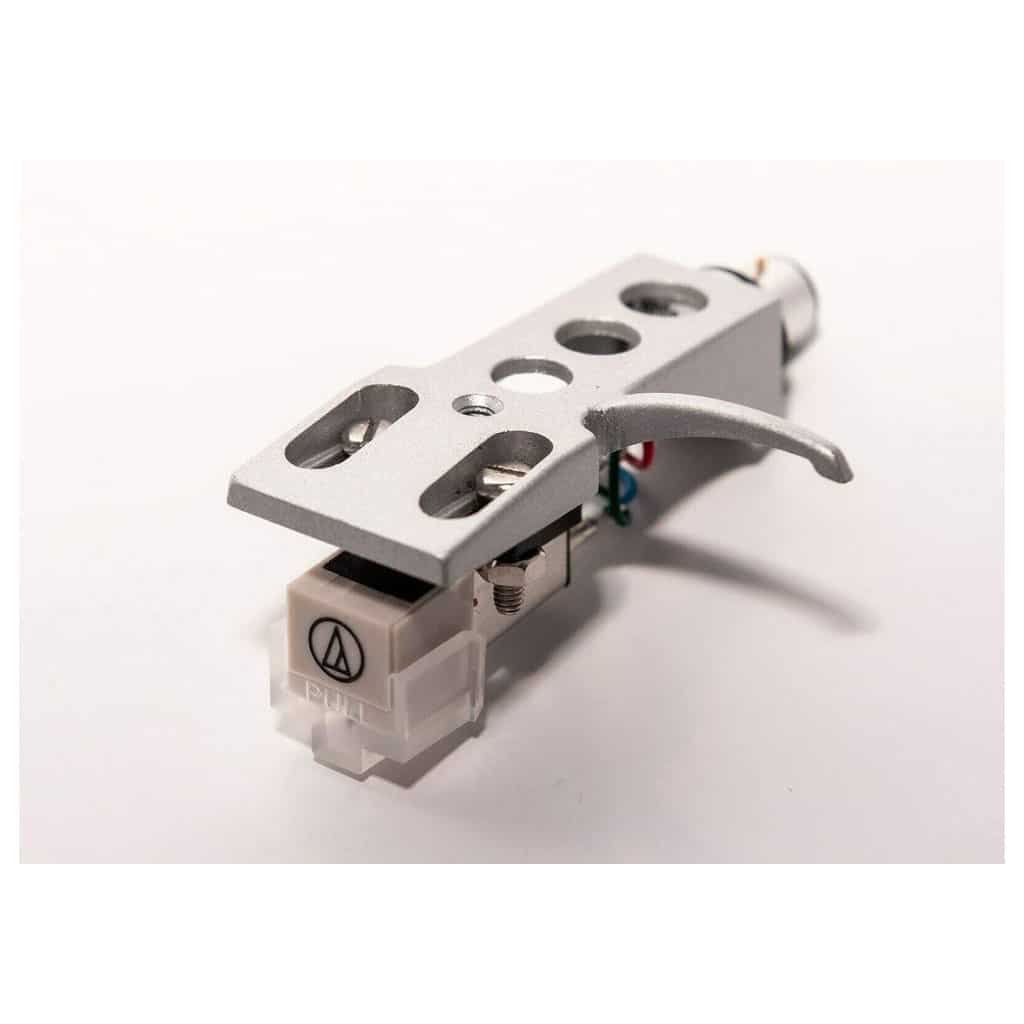

Audio Technica Silver Headshell, AT-3600L

Silver Headshell with AT-3600L Cartridge and Stylus – Compatible with Pioneer Turntables

This high-quality silver headshell assembly comes equipped with the widely respected AT-3600L cartridge and conical stylus, delivering strong performance, warm analog sound, and reliable tracking. Designed for easy installation and long-lasting durability, this setup is ideal for restoring or upgrading Pioneer turntables. Whether you’re a casual listener or a vinyl enthusiast, it offers a balanced blend of clarity, dynamic range, and minimal groove wear.

Features:

• Complete Assembly:
  Includes a silver headshell with a factory-installed AT-3600L cartridge and conical stylus—ready to mount and play.
• Compatible with Pioneer Turntables:
  Designed to fit a wide range of Pioneer models including:
  PLX-1000, PL-518, PL-530, PL-A35, PLX-500, PL-560, PL-200, PL-516, PL-255, PL-200X, XL-A700, and PL-A45D.
• High-Quality Construction:
  Each unit is carefully assembled and tested for reliable audio performance and long-term use.
• Excellent Sound Clarity:
  Offers clean, balanced output with strong midrange presence and smooth highs—ideal for both new and vintage vinyl records.
• Stylus Protection:
  Comes with a protective needle cover for safe storage when not in use.

Technical Specifications:

• Cartridge Model: AT-3600L
• Stylus Shape: Conical
• Frequency Response: 20 Hz – 20,000 Hz
• Channel Separation: 18 dB at 1 kHz
• Channel Balance: 1.5 dB
• Output Voltage: 4.2 mV (1 kHz, 5 cm/sec)
• Vertical Tracking Angle: 24°
• Recommended Tracking Force: 2.5 – 3.5 grams
• Recommended Load Impedance: 47 kΩ
• Mounting Hole Spacing: 13 mm (center-to-center)
• Headshell Terminals: 4-pin (R+ red, R– green, L+ white, L– blue)
• Recommended Acupressure Range (Tracking Force): 1.5g – 2g
